BLAST search results

Blast results were achieved by placing the FASTA sequence for the 2 isoforms of the Insulin receptor into the Blast search query. The results are shown below:

Blast search result for Insulin receptor: Query ID: Icl/20144

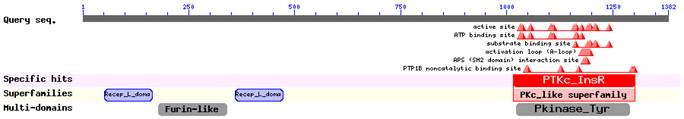

CD search result summary

Top 7 E value scores:

Accession	Description	Max score	Total score	Query coverage	E value	Links
P06213.3	RecName: Full=Insulin receptor; Short=IR; AltName: CD_antigen=CD220; Contains: RecName: Full=Insulin receptor subunit alpha; Contains: RecName: Full=Insulin receptor subunit beta; Flags: Precursor >gb\|AAA59452.1\| insulin receptor [Homo sapiens]	2883	2883	100%	0.0
NP_000199.2	insulin receptor isoform Long precursor [Homo sapiens]	2881	2881	100%	0.0
AAA59174.1	insulin receptor precursor [Homo sapiens]	2878	2878	100%	0.0
EAW69042.1	insulin receptor, isoform CRA_a [Homo sapiens]	2818	2818	99%	0.0
EAW69044.1	insulin receptor, isoform CRA_c [Homo sapiens]	2789	2789	99%	0.0
AAI17173.1	Insulin receptor [Homo sapiens]	2782	2782	100%	0.0
NP_001073285.1	insulin receptor isoform Short precursor [Homo sapiens]	2780	2780	100%	0.0

Blast search Short isoform: Query Id: lcl/ 25703

E value top 7 results:

Accession	Description	Max score	Total score	Query coverage	E value	Links
AAI17173.1	Insulin receptor [Homo sapiens]	2858	2858	100%	0.0
CAA26096.1	unnamed protein product [Homo sapiens]	2856	2856	100%	0.0
NP_001073285.1	insulin receptor isoform Short precursor [Homo sapiens]	2855	2855	100%	0.0
1104300A	insulin receptor precursor	2849	2849	100%	0.0
P06213.3	RecName: Full=Insulin receptor; Short=IR; AltName: CD_antigen=CD220; Contains: RecName: Full=Insulin receptor subunit alpha; Contains: RecName: Full=Insulin receptor subunit beta; Flags: Precursor >gb\|AAA59452.1\| insulin receptor [Homo sapiens]	2782	2782	100%	0.0
EAW69047.1	insulin receptor, isoform CRA_f [Homo sapiens]	2781	2781	97%	0.0
NP_000199.2	insulin receptor isoform Long precursor [Homo sapiens]	2780	2780	100%	0.0

Blast search results for Long isoform: Query ID: ICI/ 10047

Top 7 E values from Blast search:

Accession	Description	Max score	Total score	Query coverage	E value	Links
P06213.3	RecName: Full=Insulin receptor; Short=IR; AltName: CD_antigen=CD220; Contains: RecName: Full=Insulin receptor subunit alpha; Contains: RecName: Full=Insulin receptor subunit beta; Flags: Precursor >gb\|AAA59452.1\| insulin receptor [Homo sapiens]	2883	2883	100%	0.0
NP_000199.2	insulin receptor isoform Long precursor [Homo sapiens]	2881	2881	100%	0.0
AAA59174.1	insulin receptor precursor [Homo sapiens]	2878	2878	100%	0.0
EAW69042.1	insulin receptor, isoform CRA_a [Homo sapiens]	2818	2818	99%	0.0
EAW69044.1	insulin receptor, isoform CRA_c [Homo sapiens]	2789	2789	99%	0.0
AAI17173.1	Insulin receptor [Homo sapiens]	2782	2782	100%	0.0
NP_001073285.1	insulin receptor isoform Short precursor [Homo sapiens]	2780	2780	100%	0.0
